功能特點

        本機是連續運行的全自動裝盒機，是電機一體化的高科技產品，完全符合GMP要求。該機由產品輸送帶、產品吸放機構、自動下說明書機構、自動打碼機構和紙盒包裝機組成，最高運轉速度可達120盒/分，我公司根據各種產品的生產設備設計與裝盒機聯機聯接的進料機構方便用戶高效、節約化管理。主要特點：變換規格方便快捷，特別適用于規格眾多的產品。

Functional features

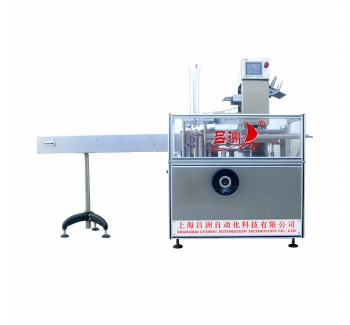

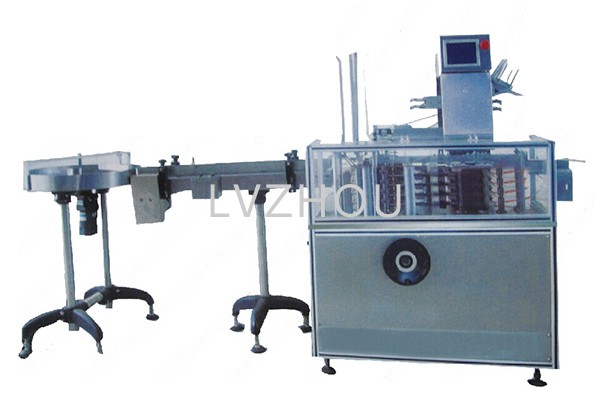

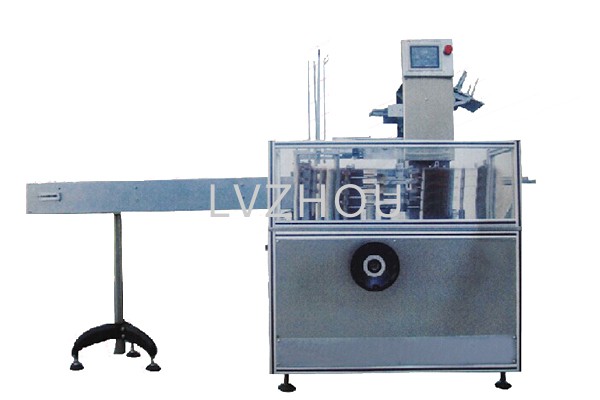

        This machine is continuous motion standing cartoning machine. It is high technology integrative product, which can fully meet requirement of GMP. AXIN-125 is composed of product conveying belt, box feeding and releasing system,automatic feeding component of leaflet,and encoder system and box packing machine. Max speed is up to 120 boxes per minute. According to different production equipment, we designed feeding system combined with this machine, which contributes to high efficiency and economical management for our clients. The main advantage is easy and convenient for specification interchange, so it will be more suitable for variable specification.

設備用途

        本機廣泛用于制藥、食品、日化等眾多領域的包裝。如：制藥的固體制劑（片劑、膠囊等）產品的泡罩裝盒，膏狀、乳脂、膠體產品軟膏的裝盒，用于西林瓶、安培瓶、注射器的托盤式的裝盒，用于液體、固體藥品的瓶式裝盒，用于粉末和顆粒產品的袋式裝盒等。食品類的各種形式的袋式裝盒，各種灌裝、盒裝的裝盒，甜品、巧克力、糖果、餅干、瓶裝式酒類、冷凍制品的裝盒等。日化類的膏狀、乳脂、洗液、膠體產品軟管或袋裝式、瓶狀的裝盒，牙膏、肥皂制品的裝盒，電燈泡、計算機軟盤、膠帶卷、攝影膠卷等各形式裝盒。

Equipment Use

        It is widely used for different including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag box for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, toothpaste, soap, lamp, computer floppy disk.

產品參數

包裝速度(約)：120(盒)/分鐘

包裝范圍 ：(長)49-120*(寬)28-55*(高)28-55mm

設備尺寸：(長)1300*(寬)1200*(高)1550mm

主氣路工作壓力：5-8L/分鐘

總功率：1.5Kw

電壓：220V/380V/50Hz

整機重量(約)：950千克

Functional features

Packaging speed(mm)：120(cases)/min

Packaging range(mm)：(L)49-100*(W)28-55*(H)28-55mm

Specification of machine(mm)：(L)1300*(W)1200*(H)1550mm

Main gas working pressure：5-8L/Min

Total power：1.5Kw

Voltage：220V/380V/50Hz

Weight(about)：950Kg
